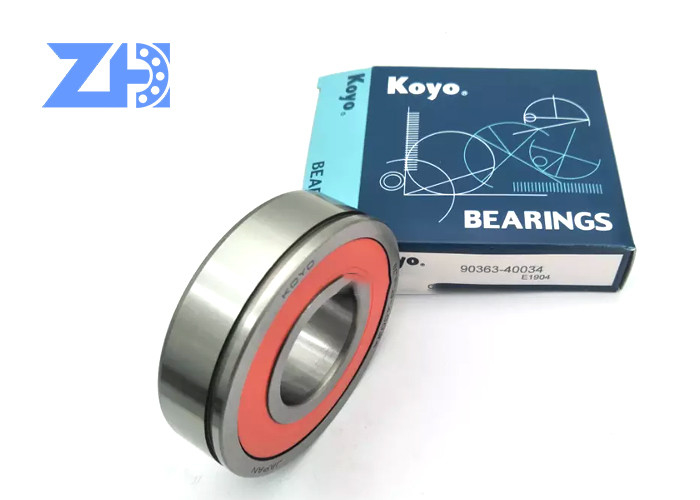

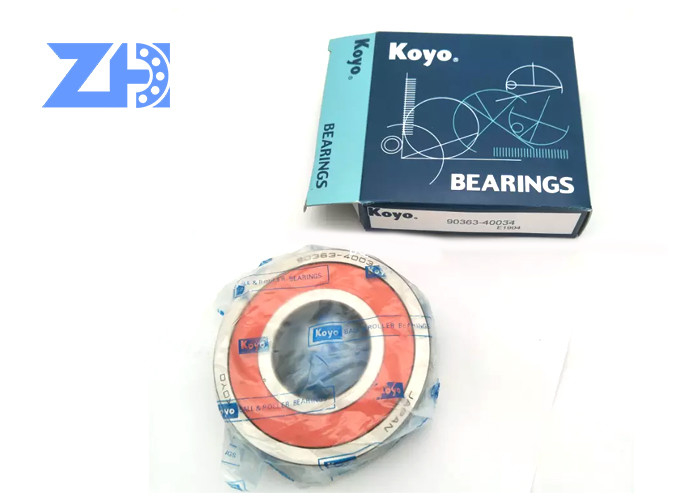

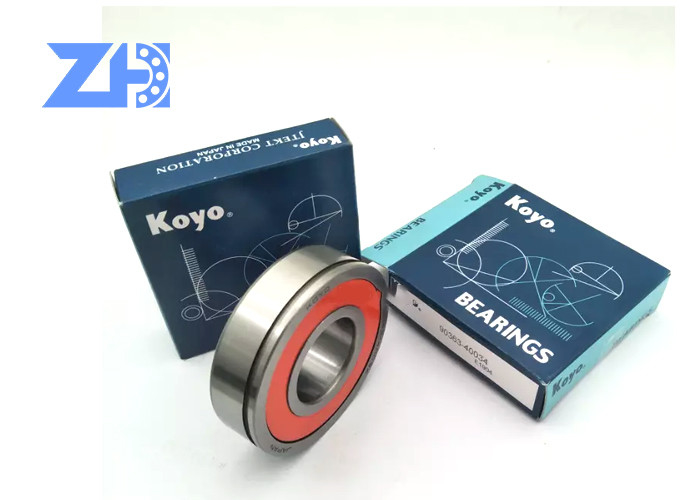

Çıkış Arka Aks Boyutu 40X92X25.5mm için 90363-40034 Otomobil Rulman

Ürün ayrıntıları:

Menşe yeri:	ÇİN JAPONYA
Marka adı:	QIEAL ZH
Certifiexcavatorion:	ISO-9001

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	Negotiable
Ambalaj bilgileri:	nötr ambalaj
Teslim süresi:	2-5 gün
Ödeme koşulları:	L / C, D / A, D / P, T / T, Western Union
Yetenek temini:	1000 adet/ay

İletişim

Detaylı ürün tanımı

Model numarası:	90363-40034	Kullanım:	Otomobiller, motor tekerlek göbeği
Boy:	40X92X25,5 mm	araba yapar:	Araba
Boşluk:	C0, C2, C3, C4	Malzeme:	çelik rulmanlar, karbon rulmanlar, paslanmaz rulmanlar
numuneler/stok:	mevcut	Conta türleri:	AÇIK 2RZ 2RS 4RS
Gürültü/Titreşim:	Z1V1 Z2V2 Z3V3	kesinlik:	ABEC 1, ABEC3, ABEC5, ABEC7, ABEC 9 mevcuttur
Vurgulamak:	90363-40034 Otomobil Rulmanı , 40X92X25.5mm Otomobil Rulmanı

90363-40034 otomatik rulman (çıkış arka aks için)90363-40034 boyut 40X92X25.5mm

Ürün Açıklaması

İç Çap (mm)d	40
Dış çap (mm)D	92
Genişlik (mm)B	26
C(mm)	37
Malzeme	krom çelik
mühürlü tip	AÇIK, RZ, 2RS, 4RS
Hoşgörü	P0, P6, P5, P4, P2
Boşluk	C2, C0, C3, C4, C5
gürültü seviyesi	Z, Z1, Z2, Z3
Adedi	10 adet
Uygulama	arka tekerlek göbeği

HAYIR'a sahip olmak.	Boyut (mm)
HAYIR'a sahip olmak.	D	D	B	C
DAC42840039	42	84	39	39
DAC43760043	43	76	43	43
DAC43790041/38	43	79	41	38
DAC43800038	43	80	38	38
DAC43800050/45	43	80	50	45
DAC43820045	43	82	45	45
DAC43(45)820037	43/45	82	37	37
DAC43(45)850037	43/45	85	37	37
DAC44825037	44	82.5	37	37
DAC45800045	45	80	45	45
DAC45800045B	45	80	45	45
DAC45840041/39	45	84	41	39
DAC45840042/40	45	84	42	40
DAC45840039	45	84	39	39
DAC45840045	45	84	45	45
DAC45850023	45	85	23	23
DAC458500302	45	85	30.2	30.2
DAC45850041	45	85	41	41
DAC48890044/42	48	89	44	42
DAC49880046	49	88	46	46
DAC50370819033/28	50.37	81.9	33	28
DAC50370819033/28A	50.37	81.9	33	28
DAC50900034	50	90	34	34
DAC70100028	70	100	28	28
DAC70100032	70	100	32	32
DAC70100032A	70	100	32	32
DAC70100032B	70	100	32	32
DAC76237920822/19	76.237	92.08	22.2	19
DAC76415920822/19	76.415	92.08	22.2	19
HAYIR.	BOYUT mm
	D	D	B	C
DAC39(41)750037B	39/41	75	37	37
DAC40750037B	40	75	37	37
DAC35720033B	35	72	33	33
DAC35660037B	35	66	37	37
DAC43(45)820037B	43/45	82	37	37
DAC45840039A	45	84	39	39
DAC42820037A	42	82	37	37
DAC408402538B	40	84.025	38	38
DAC30600337D	30	60.03	37	37
DAC37740437	36.98	74.04	37	37
DAC39720438	39	72.04	38	38
DAC49900045	49	90	45	45
DAC42820036B	42	82	36	36
DAC43(45)820037C	43/45	82	37	37
DAC28600338/37	28	60.03	38	37
DAC28580042B	28	58	42	42
DAC35720433A	35	72.04	33	33
DAC35720433B	35	72.04	33	33
DAC38(40)720041/37	38/40	72	42	37
DAC38710039	38	71	39	39
DAC38720236(33) UM	37.99	72.02	36	33
DAC38740236(33) UM	37.99	74.02	36	33
DAC40720836	40	72.08	36	36
DAC40740042A	40	74	42	42
DAC40740042B	40	74	42	42
DAC44840042	44	84	42	42

HAYIR.	BOYUT mm
	D	D	B	C
DAC35650035B	35	65	35	35
DAC35650037	35	65	37	37
DAC35660032	35	66	32	32
DAC35660033	35	66	33	33
DAC35660037	35	66	37	37
DAC35660037A	35	66	37	37
DAC35680037	35	68	37	37
DAC35680037A	35	68	37	37
DAC35680037B	35	68	37	37
DAC34990680233/30	34.99	68.02	33	30
DAC35680039/36	35	68	39	36
DAC35720028	35	72	28	28
DAC35720228	35	72.02	28	28
DAC35720033	35	72	33	33
DAC35720033A	35	72	33	33
DAC35720433	35	72.04	33	33
DAC35720233/31	35	72.02	33	31
DAC35720034	35	72	34	34
DAC35720034A	35	72	34	34
DAC36680033	36	68	33	33
DAC36720534	36	72.05	34	34
DAC37720033	37	72	33	33
DAC37720037	37	72	37	37
DAC37720237	37	72.02	37	37
DAC37720437	37	72.04	37	37
DAC37740045	37	74	45	45
DAC37990710033/30	37.99	71	33	30
DAC38100700037	38.1	70	37	37
DAC38700037	38	70	37	37
DAC38700038	38	70	38	38
DAC38700038B	38	70	38	38
DAC37990710233/30	37.99	71.02	33	30
DAC38720236/33B	38	72.02	36	33
DAC38720040	38	72	40	40
DAC37990720236/33	37.99	72.02	36	33
